UnisonDB#

A reactive, multi-modal database built on B+Trees and WAL-based streaming replication, designed for local-first, edge-scale applications.

What is UnisonDB? UnisonDB is a log-native database that replicates like a message bus. It combines database semantics with streaming mechanics to provide a powerful foundation for reactive architectures and local-first systems.

Key Features#

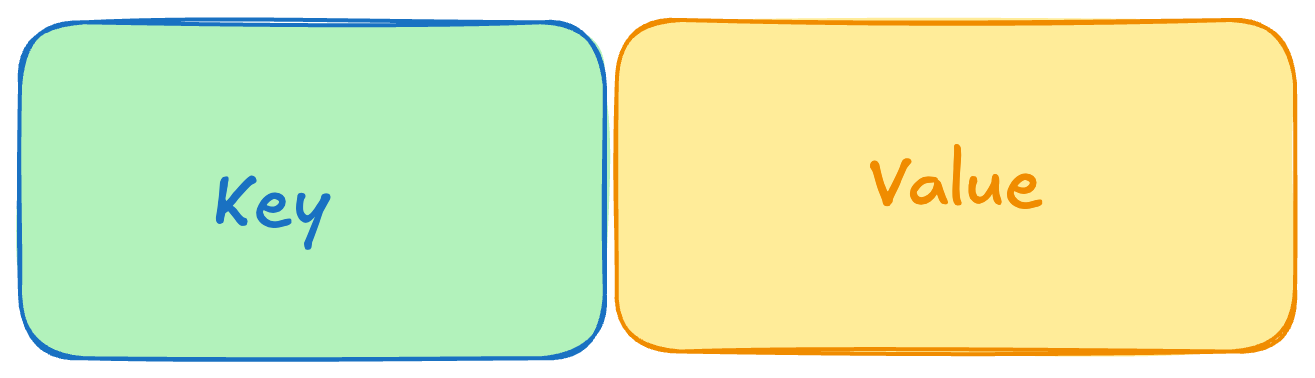

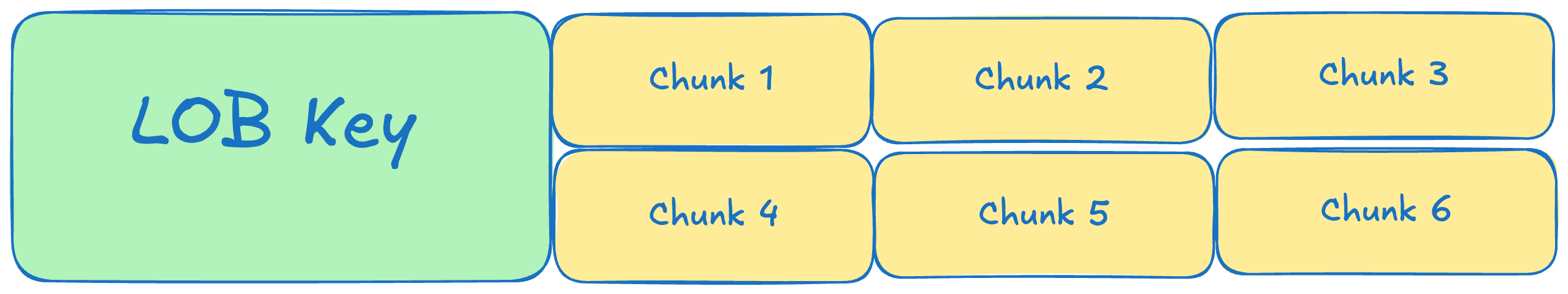

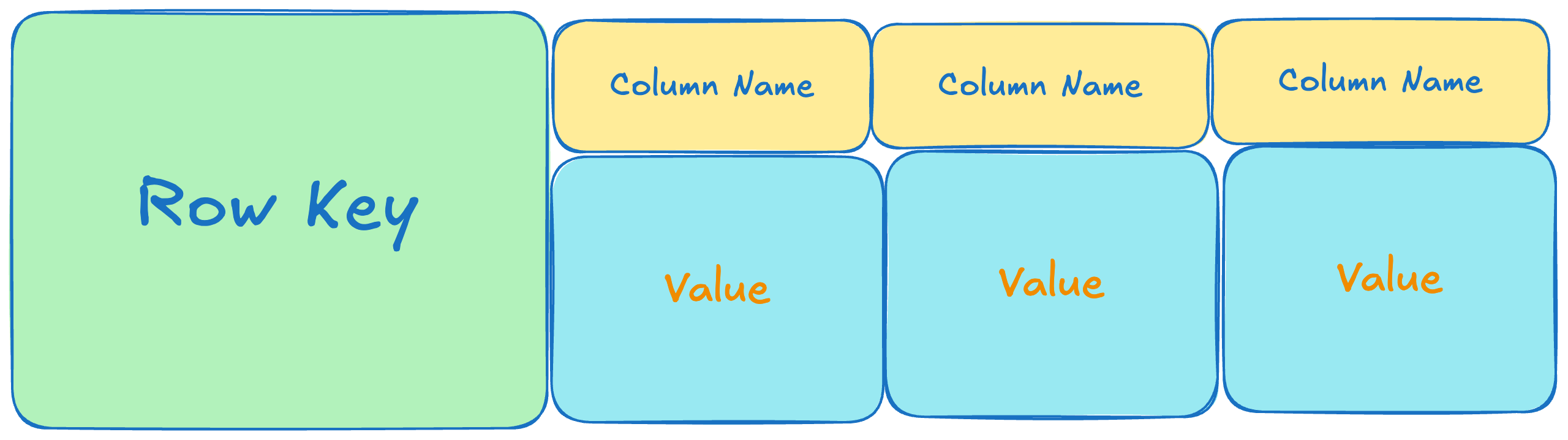

• Multi-Modal Storage: Key-Value, Wide-Column, and Large Objects (LOB)
• Streaming Replication: WAL-based replication with sub-second fan-out to 100+ edge replicas
• Real-Time Notifications: ZeroMQ-based change notifications with sub-millisecond latency
• Durable & Fast: B+Tree storage with Write-Ahead Logging
• Edge-First Design: Optimized for edge computing and local-first architectures

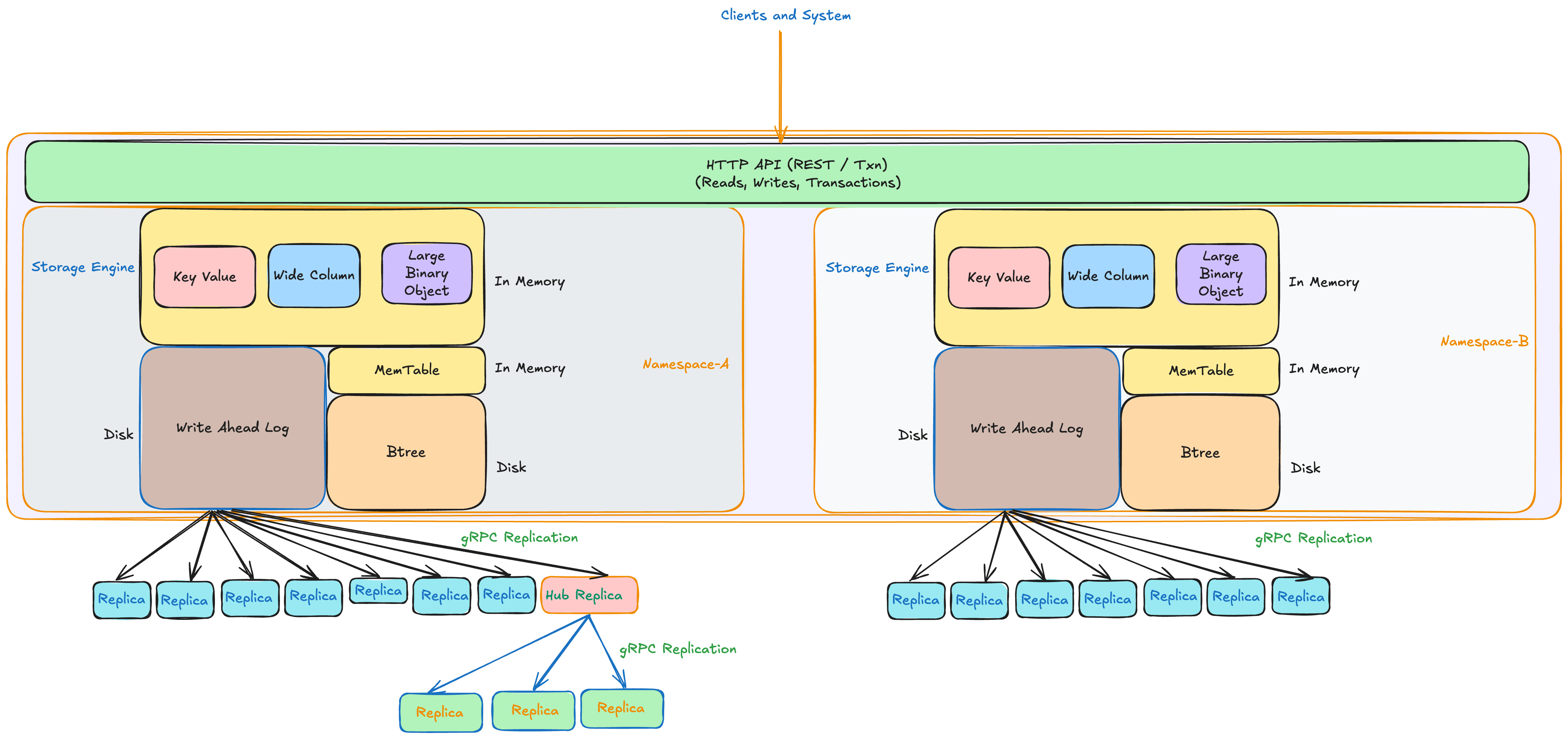

• Namespace Isolation: Multi-tenancy support with namespace-based isolation

                         ┌───────────────────────────────────────────────┐

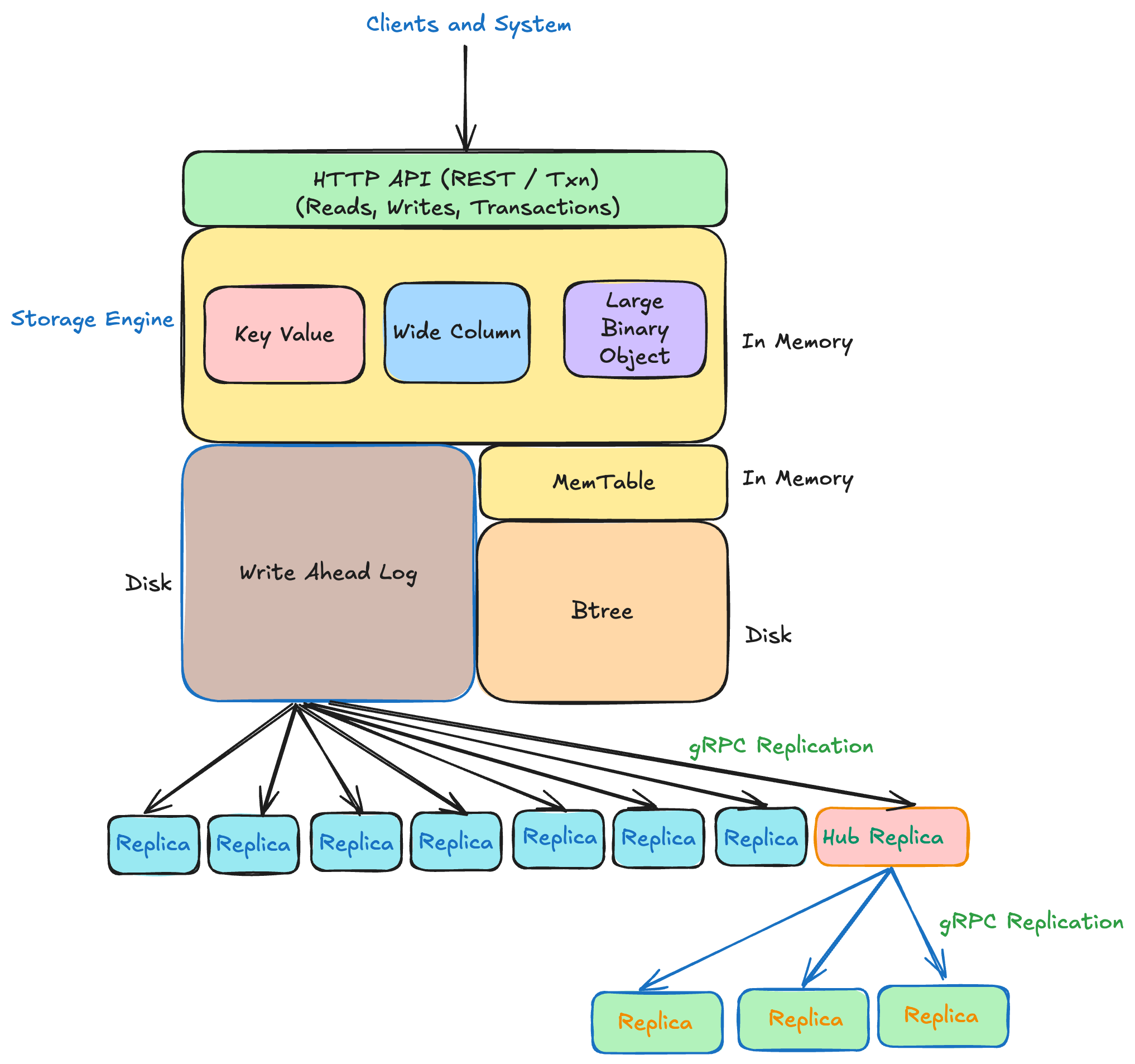

                         │                   UnisonDB                    │
                         ├───────────────────────────────────────────────┤
Clients & Systems  ────▶ │           HTTP API (REST / Txn)               │
                         │       (Reads, Writes, Transactions)           │
                         ├───────────────────────────────────────────────┤
                         │                Storage Engine                 │
                         │   ┌──────────┐  ┌──────────┐  ┌────────┐      │
                         │   │   KV     │  │   Row    │  │  LOB   │      │
                         │   └──────────┘  └──────────┘  └────────┘      │
                         ├───────────────────────────────────────────────┤
                         │     Log-Native Core: WAL + MemTable +         │
                         │             B+Tree (LMDB/BoltDB)              │
                         ├───────────────────────────────────────────────┤
                         │             Streaming Replication             │
                         │         (Hub-and-Spoke / Peer-to-Peer)        │
                         └───────┬───────────────────────────┬───────────┘
                                 │                           │
                                 ▼                           ▼
                        ┌─────────────────┐         ┌─────────────────┐
                        │   Edge Replica  │  ...    │   Edge Replica  │
                        │  Local Queries  │         │  Local Queries  │
                        └────────┬────────┘         └────────┬────────┘
                                 │                           │
                                 │  (Post-Commit)            │  (Post-Commit)
                                 ▼                           ▼
                       ┌────────────────────────────┐   ┌────────────────────────────┐
                       │   ZeroMQ PUB/SUB Sidecar   │   │   ZeroMQ PUB/SUB Sidecar   │
                       │   • Local change feed      │   │   • Local change feed      │
                       │   • Runs on primary/edge   │   │   • Runs on primary/edge   │
                       └────────────────────────────┘   └────────────────────────────┘


Quick Start#

# Clone the repository
git clone https://github.com/ankur-anand/unisondb
cd unisondb

# Build
go build -o unisondb ./cmd/unisondb

# Run in replicator mode (primary)
./unisondb server --mode replicator --config config.toml

# Use the HTTP API
curl -X PUT http://localhost:4000/api/v1/default/kv/mykey \
  -H "Content-Type: application/json" \
  -d '{"value":"bXl2YWx1ZQ=="}'

Deployment Topologies#

1. Single Server#

┌─────────────────┐
│  Primary Server │
│  (Server Mode)  │
│  - HTTP API     │
│  - Writes OK    │
│  - Reads OK     │
└─────────────────┘

Simple deployment for small workloads.

2. Primary + Replicas (Read Scaling)#

       ┌─────────────────┐
       │  Primary Server │
       │  (Server Mode)  │
       └────────┬────────┘
                │ gRPC replication
       ┌────────┴────────┐
       ↓                 ↓
┌─────────────┐   ┌─────────────┐
│  Relayer 1  │   │  Relayer 2  │
│ (Read-only) │   │ (Read-only) │
└─────────────┘   └─────────────┘

Primary handles all writes, relayers provide read scalability.

3. Hub-and-Spoke (Edge Computing)#

           ┌──────────────────┐
           │   Central Hub    │
           │  (Server Mode)   │
           └────────┬─────────┘
                    │ gRPC replication
         ┌──────────┼──────────┐
         ↓          ↓          ↓
    ┌────────┐ ┌────────┐ ┌────────┐
    │ Edge 1 │ │ Edge 2 │ │ Edge 3 │
    │Relayer │ │Relayer │ │Relayer │
    └───┬────┘ └───┬────┘ └───┬────┘
        │          │          │
     ZeroMQ     ZeroMQ     ZeroMQ
        ↓          ↓          ↓
    Local      Local      Local
    Apps       Apps       Apps

Central hub replicates to many edge nodes. Each edge serves local apps via ZeroMQ.

4. Multi-Hub (Geographic Distribution)#

┌──────────────┐           ┌──────────────┐
│  Hub US-East │◄─────────►│  Hub Europe  │
│ (Server Mode)│   gRPC    │(Server Mode) │
└──────┬───────┘  bidirect.└──────┬───────┘
       │                          │
   gRPC│                          │gRPC
       ↓                          ↓
  ┌────────┐                 ┌────────┐
  │ East   │                 │ Europe │
  │Relayers│                 │Relayers│
  └────────┘                 └────────┘

Multiple hubs for geographic distribution. Each hub can be a server accepting local writes.

5. Multi-Hop Relay (Deep Edge)#

    ┌─────────┐
    │ Primary │ (Server Mode)
    └────┬────┘
         │ gRPC
         ↓
    ┌─────────┐
    │ Relay L1│ (Relayer Mode)
    └────┬────┘
         │ gRPC
    ┌────┴─────┐
    ↓          ↓
┌─────────┐ ┌─────────┐
│Relay L2a│ │Relay L2b│ (Relayer Mode)
└────┬────┘ └────┬────┘
     │           │ ZeroMQ
     ↓           ↓
  Local       Local
  Apps        Apps

Multi-hop replication for deep edge deployments.

6. Hybrid: Replication + Local Notifications#

┌─────────────────────────────────────┐
│         Primary Server              │
│         (Server Mode)               │
│  ┌──────────────┐                   │
│  │   Storage    │                   │
│  └──────┬───────┘                   │
│         │                           │
│    ┌────┴────┐                      │
│    ↓         ↓                      │
│ [gRPC]   [ZeroMQ]                   │
└───┬──────────┬──────────────────────┘
    │          │
    │          └──→ Local Apps (IPC)
    │              - Cache service
    │              - Analytics service
    │              - Audit logger
    ↓
  Relayers (other machines)

Same instance uses gRPC for replication AND ZeroMQ for local notifications.

Use Cases#

Edge Computing#

Deploy UnisonDB at the edge for low-latency data access with automatic replication to central hubs.

Local-First Applications#

Build responsive applications that work offline and sync when connected.

Real-Time Analytics#

Stream data changes to analytics systems with sub-second latency.

Multi-Region Replication#

Replicate data across geographic regions with configurable consistency.

Documentation Structure#

• Getting Started - Installation, configuration, and quick start
• Architecture - Deep dive into UnisonDB internals
• HTTP API - REST API reference with examples
• Examples - Various Use Case Examples

Community & Support#

• GitHub: github.com/ankur-anand/unisondb
• Issues: Report bugs or request features
• Discussions: Join the conversation

License#

UnisonDB is released under the Apache 2.0 License.
